In the world of steel structure design, innovation is no longer limited to increasing material thickness or enlarging sections. Instead, the focus is shifting toward smart engineering solutions that deliver better performance with أقل weight and cost. Among the most notable of these solutions are Cellular Beams and Castellated Beams, which have become widely used in modern construction projects.
to watch video click here

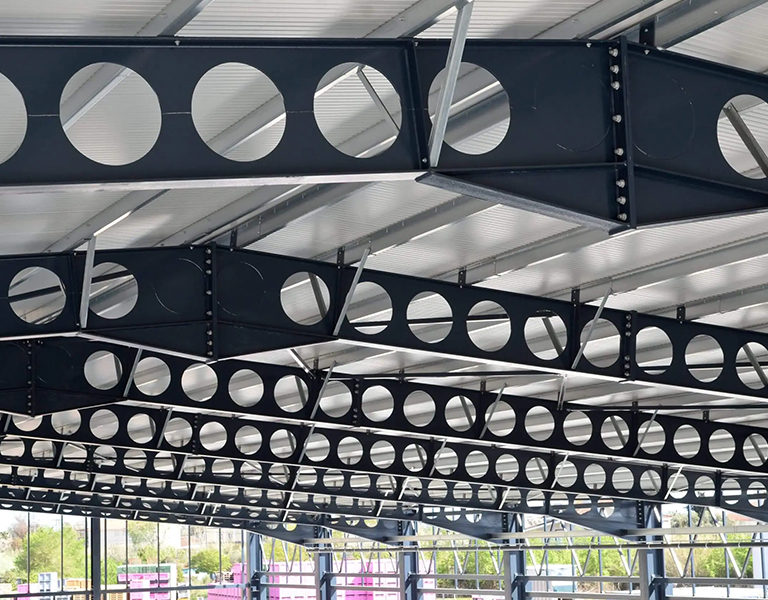

What Are Cellular and Castellated Beams?
This technique involves modifying a standard steel beam by cutting it in a specific pattern—typically a zigzag shape—and then re-welding it to create a deeper section with regular openings.
These openings are usually circular in Cellular Beams and hexagonal or polygonal in Castellated Beams, though custom shapes can also be designed depending on project requirements.
How Do They Improve Structural Performance?
The key idea behind this system is simple: increasing the beam depth significantly enhances its bending resistance.
With greater depth, the moment of inertia increases, leading to:
- Higher stiffness
- Reduced deflection
- Improved load-bearing capacity
Most importantly, these improvements are achieved without a significant increase in weight or material usage, making them highly efficient from an engineering and economic standpoint.
Practical Applications in Projects
Beyond structural benefits, these beams offer major practical advantages on-site. The openings allow for:
- Electrical installations
- HVAC (heating, ventilation, and air conditioning) systems
- Various mechanical and piping services
This results in:
- Reduced need for suspended ceilings
- Increased clear ceiling height
- Better coordination between structural and MEP systems
Where Are They Used?
Cellular and castellated beams are commonly used in:
- Shopping malls
- Commercial and office buildings
- Warehouses and industrial facilities
- Large-span structures
They are particularly valuable in projects where both structural efficiency and space optimization are critical.
Economic and Architectural Benefits
In addition to performance, this system provides several economic advantages:
- Reduced steel consumption
- Easier and faster installation
- Lower finishing costs
Architecturally, these beams also offer a modern industrial aesthetic, especially when left exposed as part of the building design.
Design Precision and Execution Quality
To fully benefit from this system, careful engineering design and high-quality fabrication are essential—especially in cutting and welding processes—to ensure optimal performance and safety.
Cellular and castellated beams represent a clear example of how modern engineering can balance strength, efficiency, cost-effectiveness, and architectural appeal.
At HassanOglu, we are committed to applying advanced engineering solutions in the design and fabrication of steel structures in Turkey, delivering projects defined by high quality and reliable performance.
